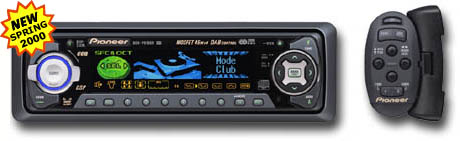

DEH-P9100R
High
Power CD/RDS Tuner |
MOSFET
4 x 45 W
MAX
POWER |
|
Features
Tuner
- Hi-speed
RDS with EON & PTY and NEWS Interrupt feature
- ARC
5
- BSA
- High
speed PLL tuner
- PNS
(Pulse Noise Suppressor)
- Number
of presets : 24
- BSM
CD
Player
- Power
load /eject
- Oversampling
digital filter : 8 x
- D/A
converter : 1 bit
- Fast
forward/reverse
- Track
Search/Scan/Repeat
- Random
play
- Last
address / last position memory
- CD
Text
- Disc
title memory
Audio
- Max.
power output : MOSFET 4 x 45 W
- Continuous
output power (DIN45324, +B=14,4V) : 4 x 27 W
- Built-in
DSP
- EEQ+
- Direct
Sub Drive
- ASL
(Automatic Sound Leveliser)
- Source
Level Adjuster
- Fader
- Dual
RCA preout / subwoofer out (3 RCA outputs)
- AUX-IN
via optional CD-RB20
- High
voltage output
General
- Multi-CD
control / CD ready
- DAB
Tuner Control
- Multi-MD
Control
- External
Unit control via IP-Bus
- Standard
remote control
- OEL
(Organic EL) multi-colour display
- Auto
Flap mechanism
- Ultra-slim
removable front panel with warning beep
- RFP
(Removable Front Panel) alert
|
Specifications
|
FM
|
|
Frequency
range (MHz) : |
87.5-108 |
|
Usable
sensitivity (dBf/µV, 75 ohms) : |
11/1.0 |
|
S/N
ratio (dB) : |
70 |
|
Frequency
response (Hz) : |
30-15,000 |
|
Stereo
separation (dB) : |
40 |
|
MW
|
|
Frequency
range (kHz) : |
531-1,602 |
|
Usable
sensitivity (µV) : |
18 |
|
LW
|
|
Frequency
range (kHz) : |
153-281 |
|
Usable
sensitivity (µV) : |
30 |
|
CD
Player
|
|
Frequency
response (Hz) : |
5-20,000 |
|
S/N
ratio (dB/1kHz) : |
110 |
|
Dynamic
range (dB/1kHz) : |
94 |
|
General
|
|
Max.
power output : |
4 x 45
W |
|
Continuous
output power (DIN45324, +B=14,4V) : |
4 x 27
W |
|
Chassis
size (W x H x D mm) headunit : |
180x50x155 |
